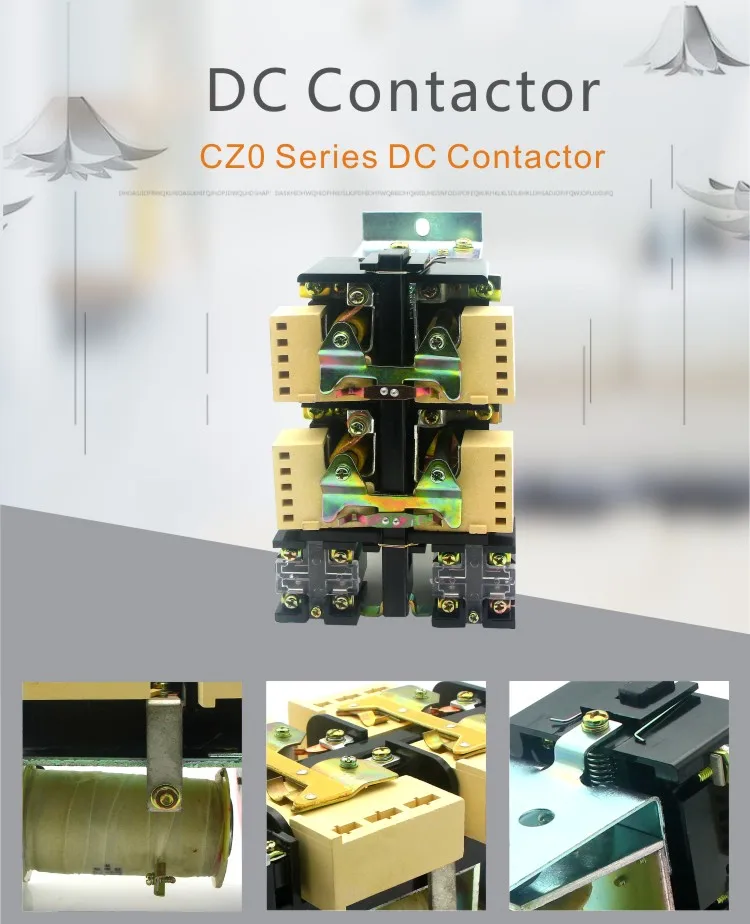

CZ0 Series DC Contactor
| Mob： | 18857736521 |
|---|---|
| Mob： | 17815788806 |
| Email:： | waken@waken.cc |
| Online More Information Buy Now | |
| Share： |
|
产品介绍

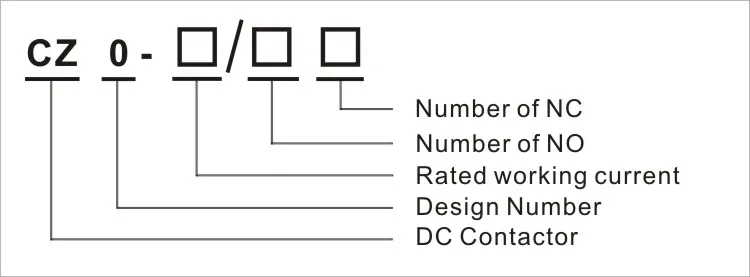

Model Explanation:
Main Technical Parameter:
Model Pole Main contact circuit(A) Auxiliary contact Arcing distance(mm) NO NC NO NC CZ0-40C Double 2 — 100 — — 50 CZ0-40CA Double 2 — 160 2 2 50 CZ0-40/20 Double 2 — 160 2 2 50 CZ0-40/02 Double — 2 160 2 2 50 CZ0-100/10 Single 1 — 400 2 2 70 CZ0-100/01 Single — 1 250 2 2 70 CZ0-100/20 Double 2 — 400 2 2 70 CZ0-150/10 Single 1 — 600 2 2 100 CZ0-150/01 Single — 1 375 2 2 100 CZ0-150/20 Double 2 — 600 2 2 100 CZ0-250/10 Single 1 — 1000 3 3 120 CZ0-250/20 Double 2 — 1000 3 3 120 CZ0-400/10 Single 1 — 1600 3 3 150 CZ0-400/20 Double 2 — 1600 3 3 150 CZ0-600/10 Single 1 — 2400 3 3 180
