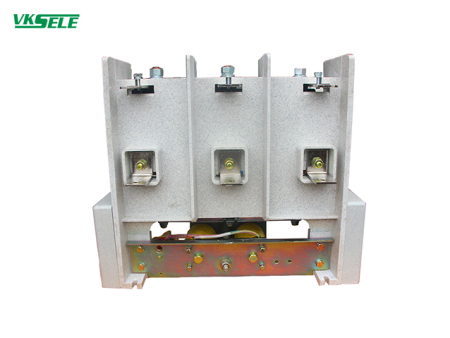

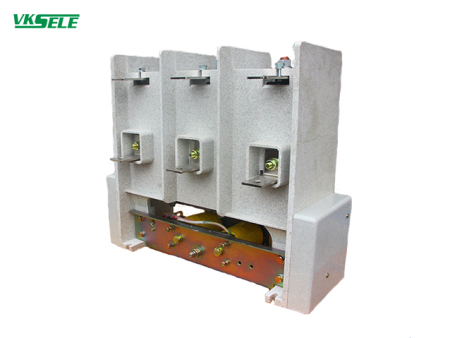

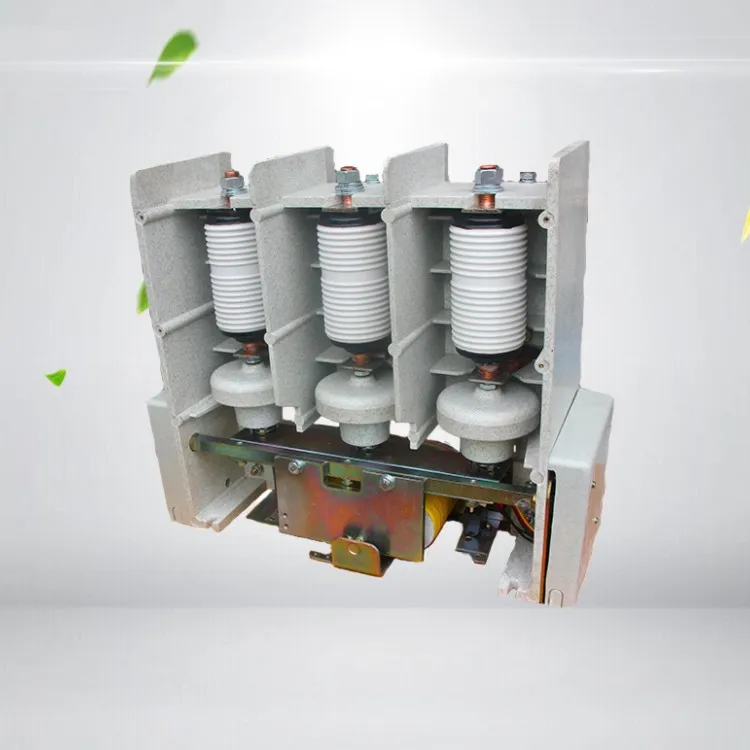

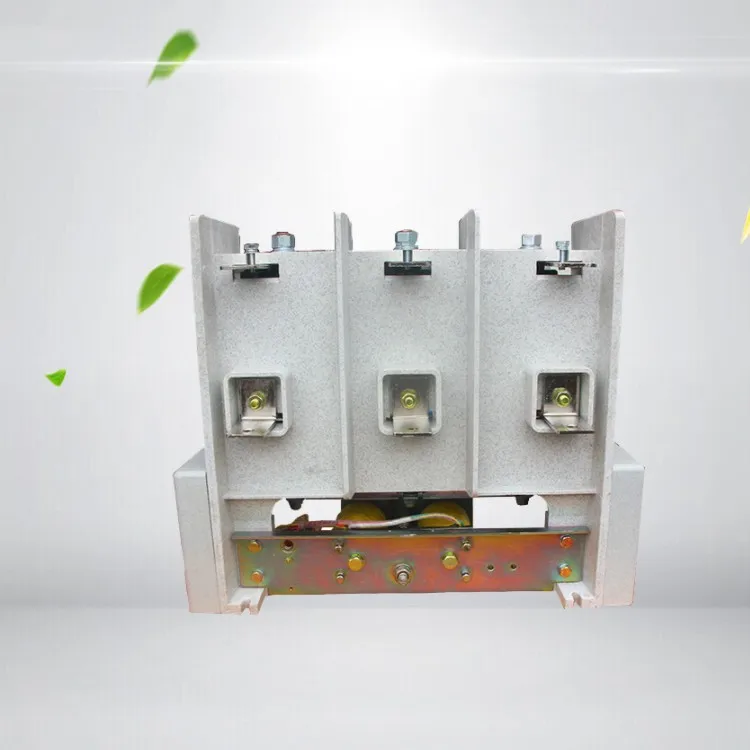

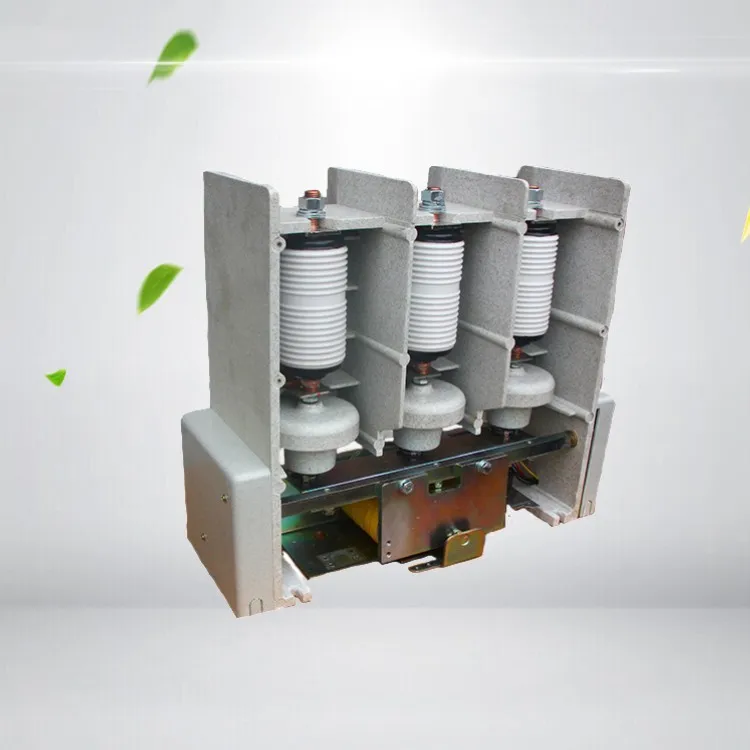

JCZ5 Series AC vacuum contactor
| Mob： | 18857736521 |
|---|---|
| Mob： | 17815788806 |
| Email:： | waken@waken.cc |
| Online More Information Buy Now | |
| Share： |
|
Previous：
CKG3 Series AC Vacuum contactor
Next：
Vacuum contactor
产品介绍
Technical Parameter
Specification:
No. Name Unit Data 1 Rated Vol. KV 7.2/12 2 Rated Current A 200,400,630 3 Rated closing current (effective value) 2000, 4000, 6300 4 Rated max. breaking current 1600, 3200, 5040 5 Rated operating voltage V AC110/220 6 Closing coil pull-in current A DC6/3, DC10/5 7 Keep the coil pull-in current DC0.32/0.16 DC0.48/0.24 8 Trip coil trip current DC2.5/1.3 9 Rated operating frequency Times/h 300 10 Mechanical life Times 30*104 11 Electrical life AC-3 Times 25*104 AC-4 5*104
