产品介绍

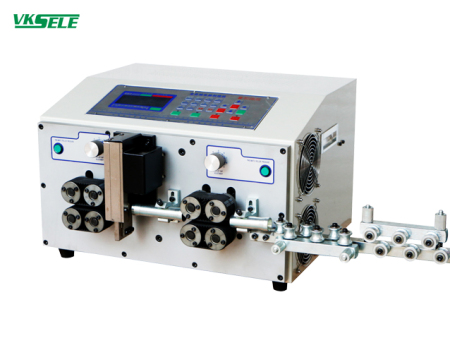

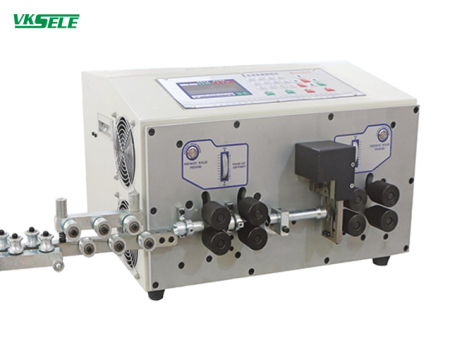

Product Description

1.Operated by LCD and controlled by full digital intelligence ensures the stable performance and easy operation; 2. Can be set arbitrarily within the cutting range, line head, end of line and total length; 3. The feeding wire, cutting wire and stripping speed can be set separately, so as to satisfy the stripping effect; 4. The motor drive adopts subdivision mode with high precision and long service life; 5. Can store 100 different specifications and types of wire processing data.

Wire Stripping Machine

Size Information

Model	WKS-609B	WKS-670
Dimensions (mm)	520550340mm	520510350mm
Weight	51KG	70KG
Power supply	AC175V--250V 50/60Hz
Power	120W--400W	800W-1000W
Cutting length	0.1mm--99999.9mm	----
Head Stripping	-----	150mm
Stripping range	0.1--35mm2	1.5--100mm2
Catheter diameter	1.5mm--8mm	2mm--16mm
Tool Material	Tungsten steel/imported high speed steel
Drive Mode	8 Rounds	8 indeoend drives
Blade Accuracy	0.03mm	0.03mm
Motor Accuracy	Silent hybrid stepper motor 0.1mm per step
Remark function	Wire outgoing and incoming automatically,and can start by scheduled
